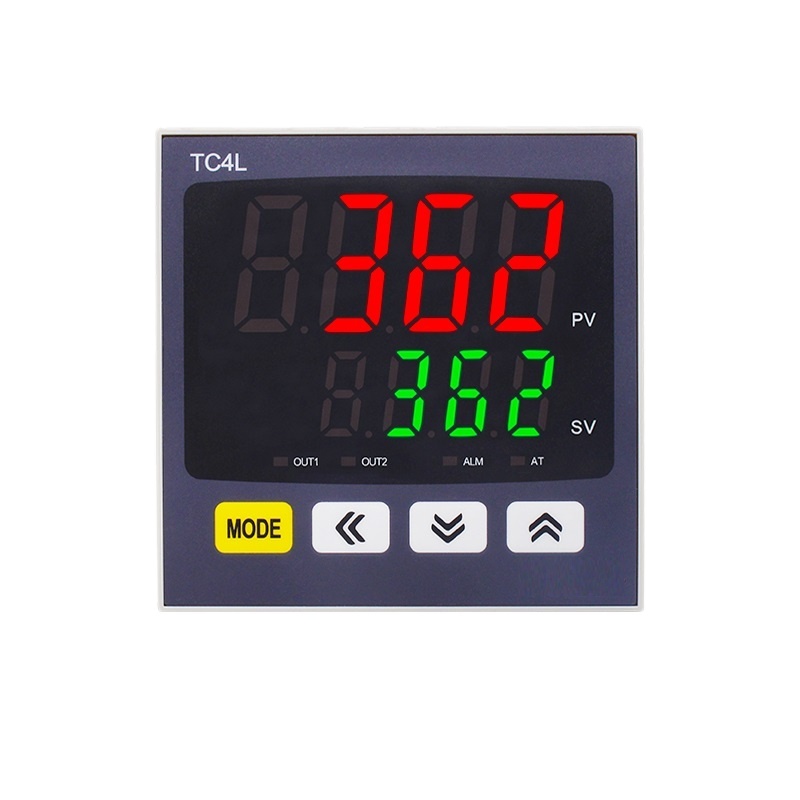

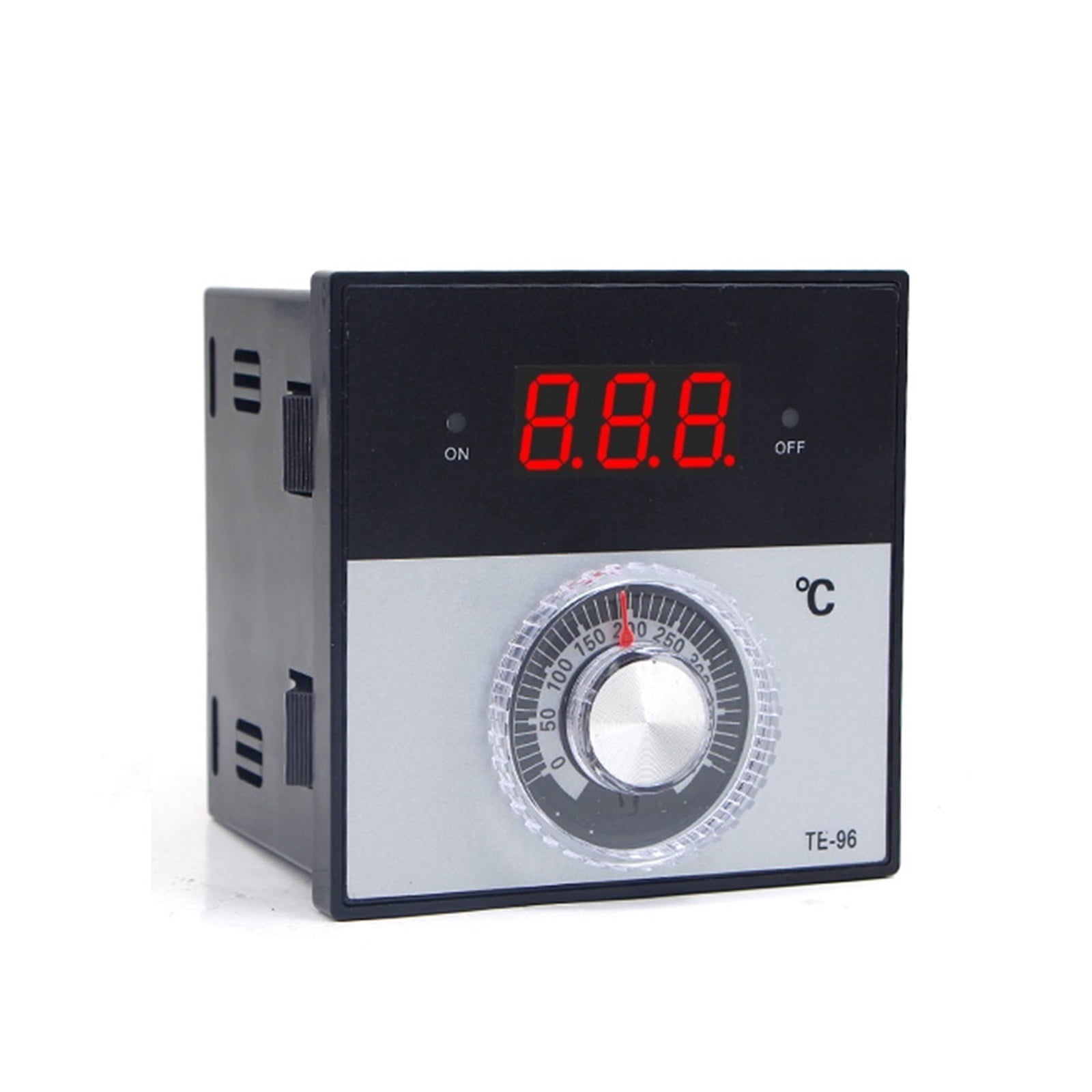

Okay, let's break down this PID temperature controller – it's a versatile little unit that's great for hobbyists, DIY projects, or small industrial setups. The model here is 96x96mm, so it fits standard panel cutouts.
It supports multiple input types: you can use K, J, S, or E-type thermocouples, or a PT100 RTD sensor. That means you can hook up pretty much any common temperature sensor you have on hand.
Output options are where it gets cool: you can get it with a relay output, an SSR (solid state relay) output, a 0-10V PID output, or a 4-20mA PID output – or even combinations like \1 Alarm + Double OP\ (which means one alarm plus both relay and SSR outputs).
This specific version is set for 24V power with a 4-20mA input. It also has alarm outputs (you can choose 1 or 2 alarms) to trigger alerts or shutdowns if temps go out of range.
It's perfect for controlling heaters, ovens, incubators, or any system where you need precise temperature management. The PID function helps avoid overshooting and keeps temps steady. Just make sure you wire it up right according to the manual!
